This soft luggage rack will work great with any soft luggage and also mount Mosko moto mounting plates.

Saves your bags from burning on the exhaust

Makes it easy to secure your bags to the rack

Powder coated, comes with bolts

Easy bolt on installation

Made in Canada, limited lifetime warranty on manufacturing

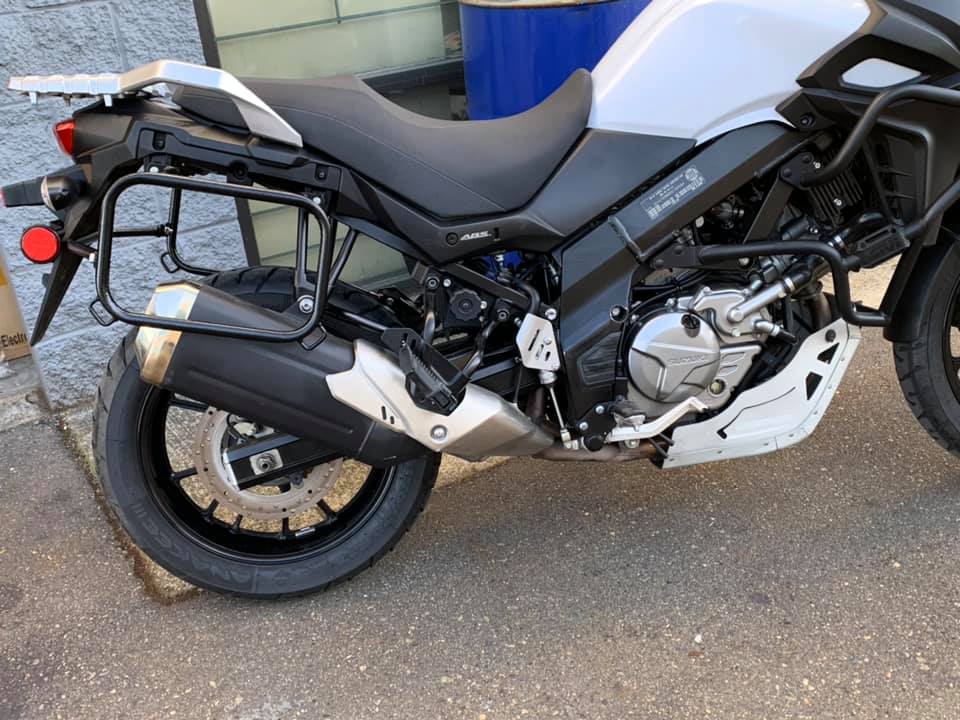

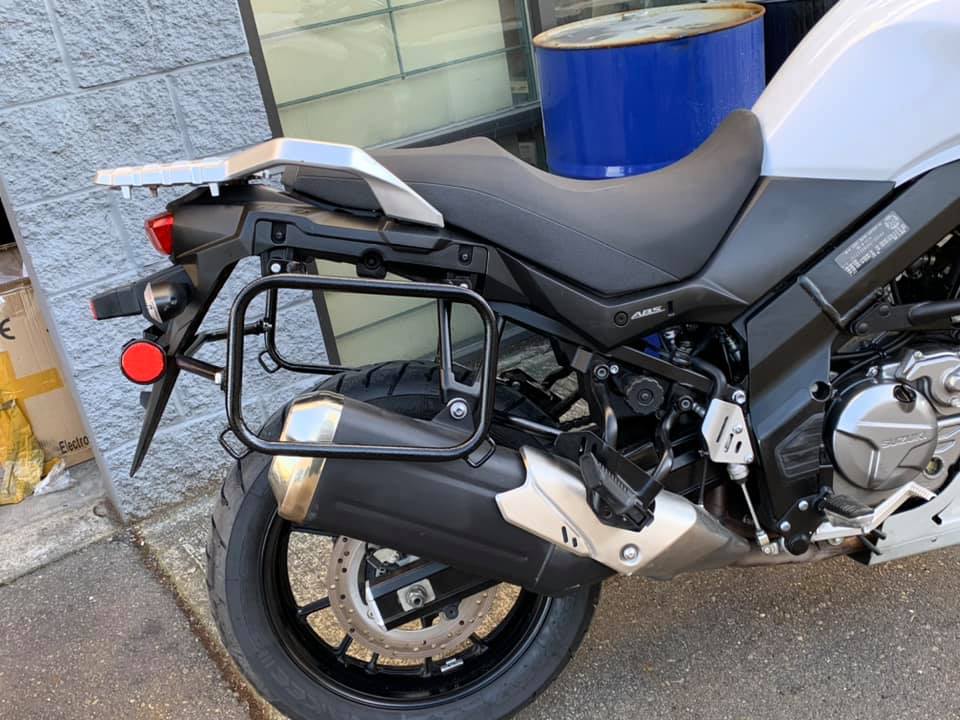

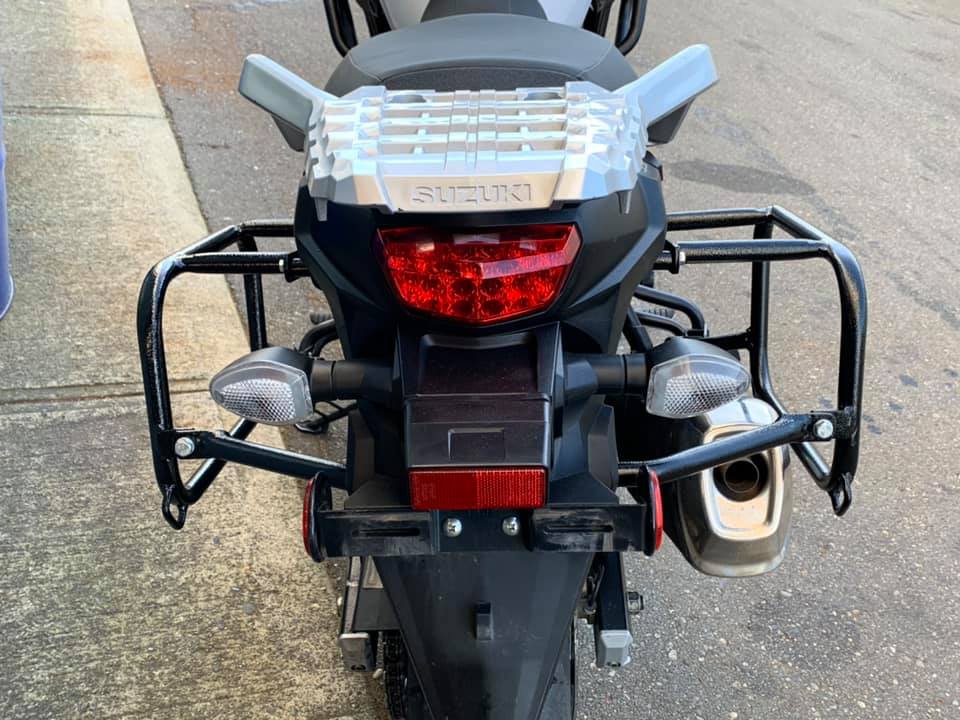

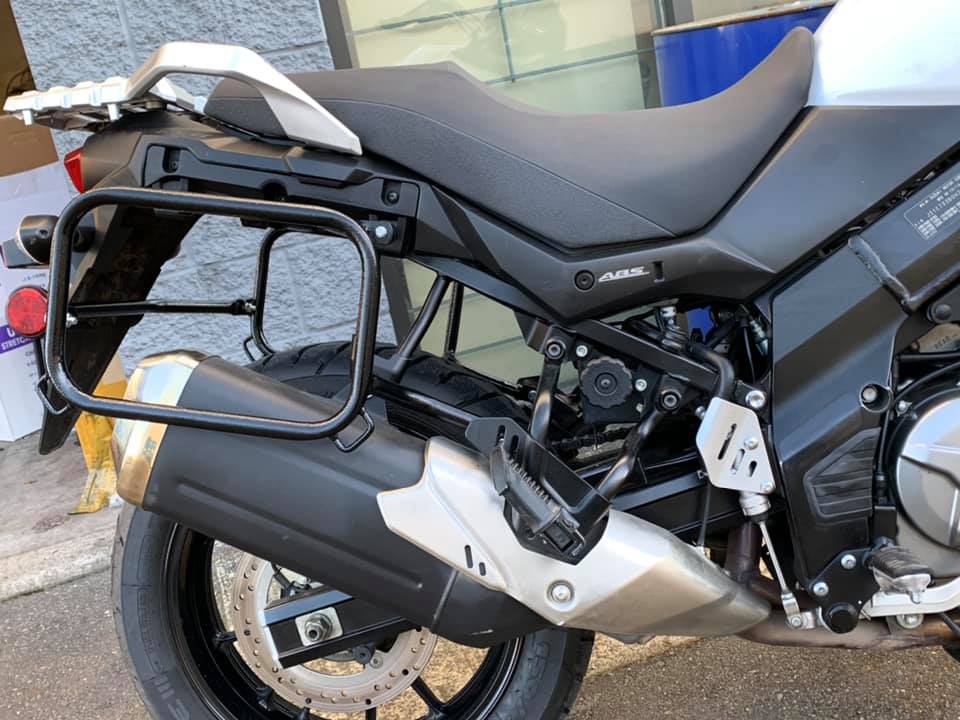

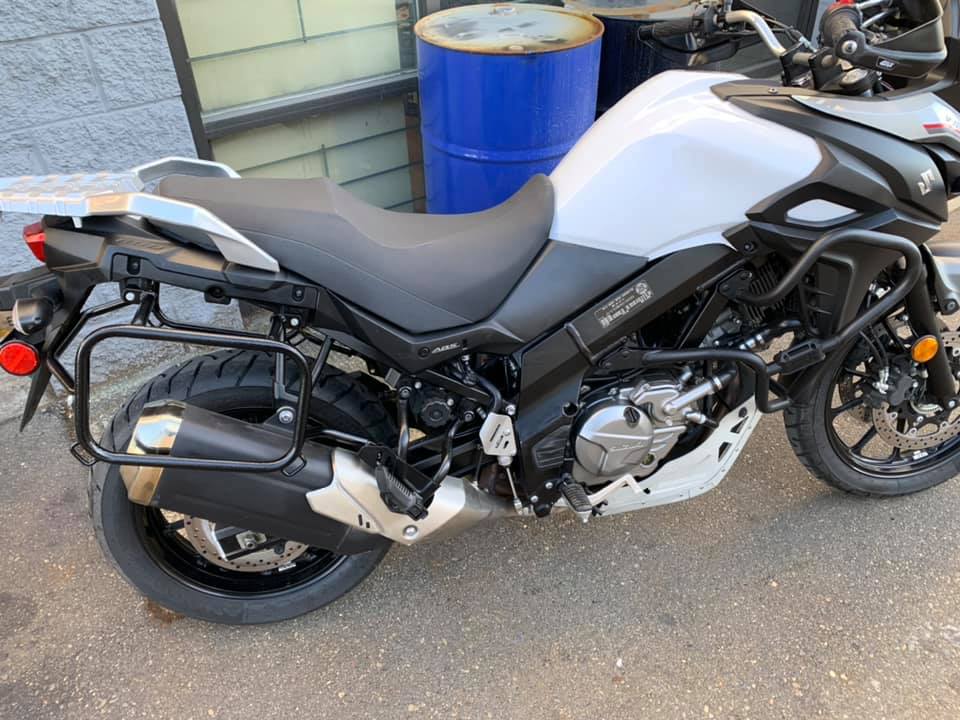

 Installation please see pictures

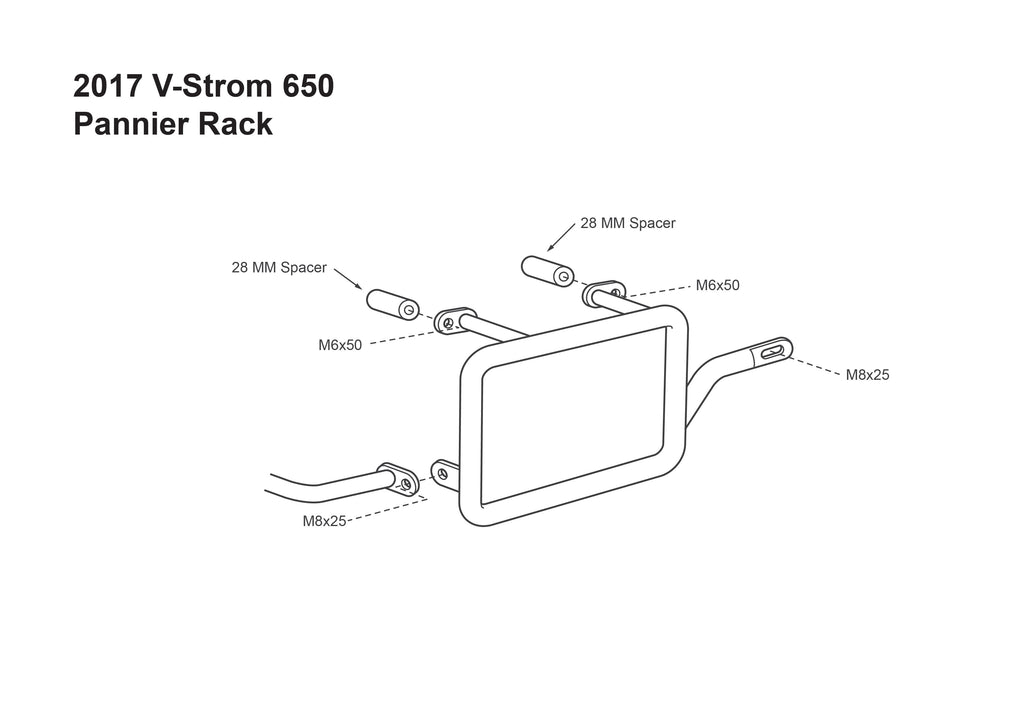

Remove the 2 lower bolts on the subframe

Hold up the rack and use the 28 mm spacers with 50 mm m6 bolts on both holes

Use the m8 x 25 mm bolt at the back of the footpeg bracket

Install the other side the same way

Connect the 2 sides with the connecting bar and use the 2 m8x25 mm bolts with nuts

Tighten all bolts
