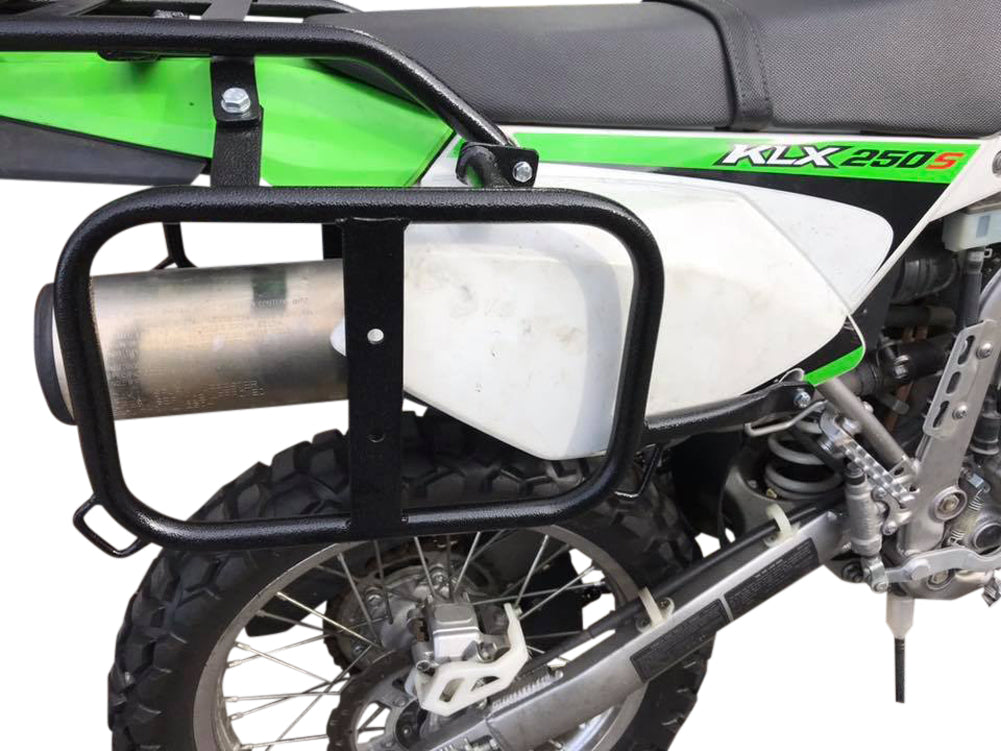

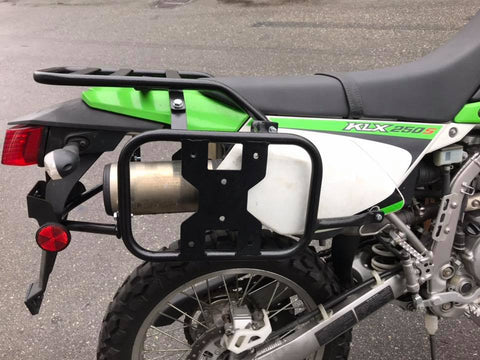

Our heavy duty side racks will work great with any soft saddlebags or rotopax gas cans.The factory tool pouch can be reinstalled if not using our rear rack.Rear rack sold separately.This rack is for use with soft luggage only ,not to mount hard cases like aluminum panniers or pelican cases.

Rear rack sold separately

Powder coated

Comes with bolts

Easy bolt on installation

Lifetime warranty

Installation

Remove the 4 bolts that hold the tool pouch

Remove the 2 seat bolts

Remove the 2 side panel bolts

Install the 2 short spacers in the rear fender

Bolt on the crossbar with the 2 x50 mm bolts

Hold up the right side and bolt on the side rack under the cross bracket not on top otherwise will not fit ,use the m8x25mm bolt and nut with washers

Use the 40 mm spacer at the seat bolt and at the lower mounting point use the m6x65mm bolts

Left side mount it under the cross bracket use the m8x25mm bolt and nut with washers

Use the 40 mm spacer at the seat bolt and use the 25mm spacer at the lower mounting point.Use m6x65mm bolt and m6x50mm bolt

You can reinstall the tool pouch if the rear rack is not being installed.

Tighten all bolts
