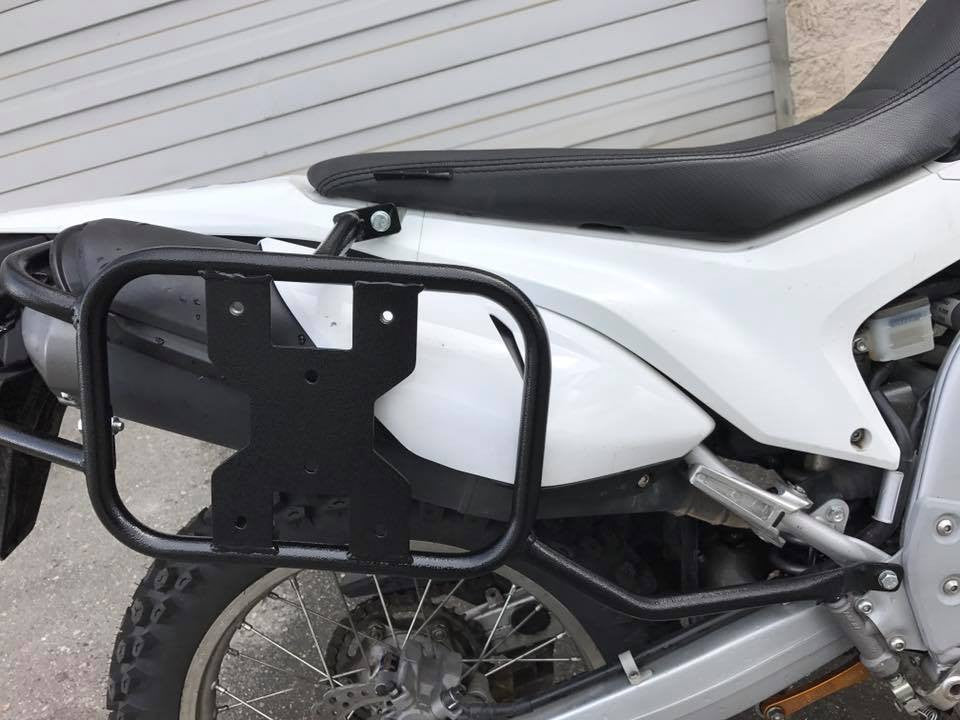

Multi use pannier rack for Honda crf250l and rally models.
Use it with rotopax
Use it with any soft luggage
Use it with any hard case like aluminum panniers ,pelican type cases or ammo cans
Made from 3/4 inch steel tubing,powder coated finish.
Comes with all the bolts and brackets necessary to mount your own cases.
Bolt on installation,turn signals do not need to be relocated.
start with right hand side,remove the lower subframe bolt ,remove the seat bolt and also the bolt underneath the rear fender
do not tighten any bolts untill installation is complete,also see pictures for installation help
hold up the rack with one hand and install the m8x70 mm seat bolt with washer and 39 mm spacer or if you have a rear rack you do not need a spacer
install the lower subfarme bolt m8x30 mm with washer
install the m8x35mm bolt with 13mm spacer under the rear fender,or if you have a rear rack you do not need a spacer
install the left side the same way
hold up the rear cross connecting bar and install it with the m8x25mm bolts
now you can tighten all the bolts
How to install the cases on the racks
install the racks on the bike and hold up the cases to the rack.mark the location with a sharpie
remove the racks from the bike
place the racks on the back of the cases,make sure they are symmetrical
place the mounting brackets in place 2 at the bottom and 1 up in the middle
drill the holes for the brackets,bolt on the brackets
drill 2 more holes thru the 2 welded nuts,make sure that you do not damage the threads
remove the rack from the case and drill these 2 holes again with a bigger drill,about 3/8
make sure the m8x25mm knobs fit thru
install the rack on the bike and hang the cases on the rack
install the knobs from the inside of the case,hand tighten only to secure the case to the rack use a washer
